Large-scale Hydrogen Generation Plant
- Energy
- Hydrogen
- Gas production and purification
Large-scale Hydrogen Generation Plant
MKK manufactures large-scale hydrogen generation plants (1,000 to 50,000 Nm3/hour) in the oil refining industry (for hydrodesulfurization of crude oil) and petrochemical industry (for production of hydrogen as a raw material for various chemical products).
Features
- Balanced draft system for high thermal efficiency of over 91%.
- Easy operational control with limited number of down-fired burners flush-mounted on the furnace top.
- Low heat flux of reforming tubes ensures high level of safety.
- Gas and /or liquid hydrocarbon is usable as a feedstock.
- Well-proven long term stability.

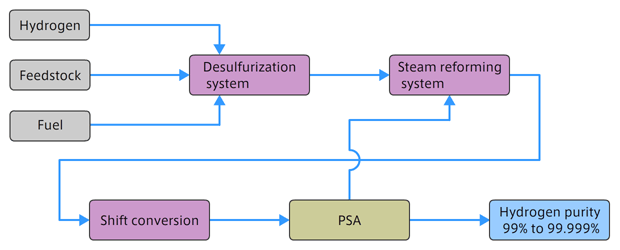

Process Flow
Specifications
| Generation capacity | Over 1,000 Nm3/h |
| Hydrogen purity | 99.0～99.999 vol.% |
| Delivery pressure | upon required |
Main Applications
- Oil refining industry (hydrodesulfurization of crude oil), petrochemical industry (production of hydrogen as a raw material for various chemical products).
