Mitsubishi Vane Decanter Centrifuge (DZ)
The Mitsubishi Vane Decanter Centrifuge is a precision centrifugal separator which brings a dramatic improvement in performance by employing separator vane stacks attached to the screw conveyor inside the rotating bowl.
Features
Employment of vane separator stacks
- The fitting of vane separator stacks dramatically increases the effective separation and sedimentation area to boost throughput by more than 200 percent.
- Allows the use of a smaller decanter body, realizing a compact size and saving energy.
- The vanes give the decanter nanoparticle separation capability, extending the range of process applications.
- Realizes more precise cut points in the classification process.
- Can be fitted with a discharge impeller pump which connects directly to the discharge piping.
Thickening control
- Can be fitted with a discharge impeller pump which connects directly to the discharge piping.
- Adjusting the impeller pump backpressure allows the amount of clarified liquid to be regulated and ensures the stable discharge of thickened liquid. (Super pool control)
High-efficiency dewatering
- The press segment installed in the dewatering zone of the bowl allows higher cake dewatering performance.

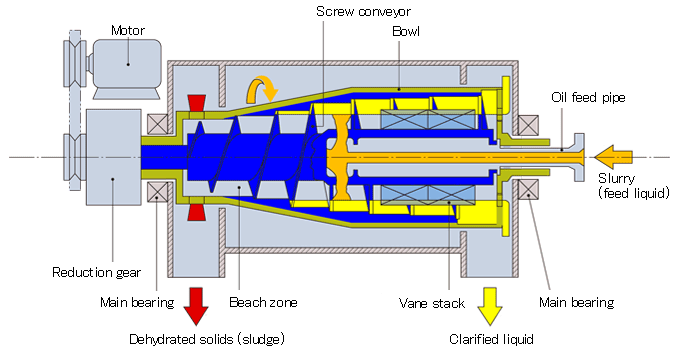

Structural Drawing
Vane Decanter Centrifuge (general purpose specification)
The above structural drawing shows general purpose spec. Decanter. In addition to the general purpose Decanter, we have other type Decanters for varied applications and processes , some of which are introduced here as below.
Decanter for sewage sludge dehydration
Please visit environmental engineering products site of this website to view " Mitsubishi Vane Decanter Centrifuge (DZ).
High-efficiency dewatering Decanter
The press segment installed in the dewatering zone of the bowl allows higher cake dewatering performance.

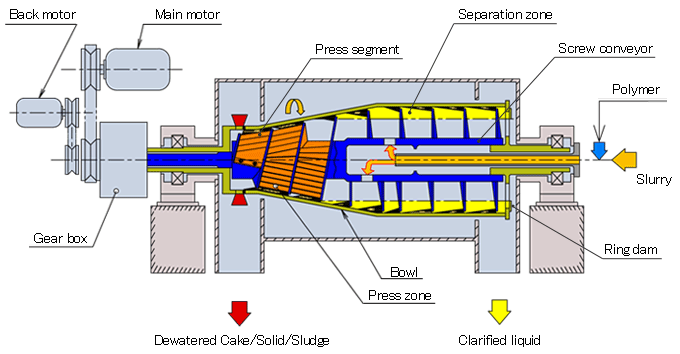

Structural Drawing of High-efficiency dewatering decanter
Specifications
Model | Throughput | Max. speed | Max. G-force | Motor output | Dimensions (mm) | Approx. weight | ||
---|---|---|---|---|---|---|---|---|
[㎥/h] | [rpm] | [G] | [kW] | L | W | H | [ton] | |
Small capacity machine, general purpose | ||||||||
DS-10V | 0.4 | 7,000 | 3,000 | 1.5 | 1,000 | 500 | 1,000 | 0.2 |
Medium/Large capacity machine, general purpose | ||||||||
DZ20 (*) | 1 | 5,200 | 3,000 | 5.5 | 1,400 | 1,000 | 600 | 0.6 |
DZ20-V1 | 1.5 | 5,200 | 3,000 | 5.5 | 1,400 | 1,000 | 600 | 0.6 |
DZ25 (*) | 3 | 4,600 | 3,000 | 7.5 | 1,900 | 1,100 | 700 | 0.8 |
DZ25-V1 | 4.5 | 4,600 | 3,000 | 7.5 | 1,900 | 1,100 | 700 | 0.8 |
DZ25-V2 | 6 | 4,600 | 3,000 | 7.5 | 1,900 | 1,100 | 700 | 0.8 |
DZ35 (*) | 8 | 3,900 | 3,000 | 15 | 2,200 | 1,300 | 800 | 1.7 |
DZ35-V1 | 10 | 3,900 | 3,000 | 15 | 2,200 | 1,300 | 800 | 1.7 |
DZ35-V2 | 12 | 3,900 | 3,000 | 15 | 2,200 | 1,300 | 800 | 1.7 |
DZ50 (*) | 16 | 2,700 | 2,000 | 45 | 3,000 | 1,800 | 1,000 | 3.5 |
DZ50-V1 | 19 | 2,700 | 2,000 | 45 | 3,000 | 1,800 | 1,000 | 3.5 |
DZ50-V2 | 22 | 2,700 | 2,000 | 45 | 3,000 | 1,800 | 1,000 | 3.5 |
Model with * mark shows the model without vane stacks.
Main Applications
- Food processing /pharmaceuticals, plastics, general chemical industry, electronics plant effluent treatment, recovery of valuable materials, recovery and recycling of silicon in semiconductors and solar cells industry.
