Mitsubishi Young Filter (YF)
The Mitsubishi Young Filter is a single-chamber continuous drum filter. Compared with conventional multi-chamber filters, it delivers superior filtration and cake-washing performance and with the features below covers a wide range of applications.
Features
- High filtration performance owing to single chamber drum of porous design and large cross-section area of filtration pipes.
- Superior cake wash performance.
- Rotational speed of the drum can be increased to boost filtration capacity.
- The fitting of an agitator increases filtration capacity while reducing utility consumption.
- Cake is separated by intermittently vibrating the loosely mounted filter cloth using blow-back air from inside the drum and allows recovery of cake as thin as 1 mm.
- Almost no clogging of filter cloth thanks to constantly exposed to blow-back air, the filter cloth clogs less and lasts longer than other types of filter.
- The simple structure and small number of component parts make the Young Filter easy to maintain and well-suited to continuous operation.

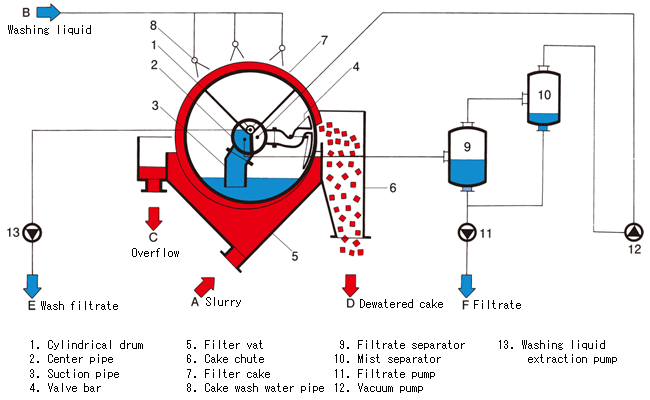

Process Flow
Lineups
Model | Filtration area(m2) | Cylinder dimensions D x L (mm) |
1×1/3 | 0.1 | 300×100 |
---|---|---|
1×2/3 | 0.2 | 300×200 |
2×2/3 | 0.4 | 600×200 |
2×1 | 0.6 | 600×300 |
3×3/4 | 0.7 | 900×300 |
4×1 | 1.3 | 1,200×300 |
4×2 | 2.4 | 1,200×600 |
4×3 | 3.8 | 1,200×900 |
4×4 | 5 | 1,200×1,200 |
4×5 | 6.2 | 1,200×1,500 |
4×6 | 7.4 | 1,200×1,800 |
5-1/2×4 | 7 | 1,650×1,200 |
5-1/2×5 | 8 | 1,650×1,500 |
5-1/2×6 | 10 | 1,650×1,800 |
5-1/2×8 | 13 | 1,650×2,400 |
5-1/2×10 | 18 | 1,650×3,000 |
6-1/2×8 | 16 | 1,975×2,400 |
6-1/2×10 | 21 | 1,975×3,200 |
6-1/2×12 | 26 | 1,975×4,000 |
7-1/2×6 | 13 | 2,250×1,800 |
7-1/2×12 |
30 |
2,356×4,080 |
Main Applications
Chemical industry | Pure terephthalic acid (PTA), resin polymers, chemical fiber raw materials, BPA, pharmaceuticals, industrial chemicals, organic acids, metallic hydroxides, dye intermediates, calcium carbonate, pulverized coal. |
---|---|
Fertilizer industry | Phosphogypsum, ammonium sulfate. |
Gunpowder industry | Nitrocellulose. |
Metal working industry | Ores, aluminum hydroxide, cryolite, carbon. |
Food processing industry | Starches, oils and fats. |
Pulp industry | Kraft pulp, ground pulp, dregs, waste liquids, lignin, chlorine dioxide. |
