Features

• The hanging structure of the carrier means microorganisms are washed off moderately and are kept in a just right amount. This makes it ideal for large volume treatment because pressure losses are maintained at a low level over long periods of operation without pressure spikes or clogging and because the flow rate can be adjusted at higher level.
• Low running cost, because no chemical agents are used and just to drive deodorizing fan only.

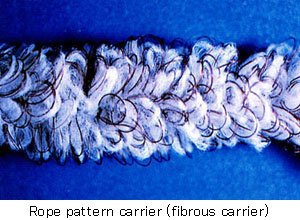

• Having excellent durability and corrosion resistance and being light and strong, the carrier has a long working life.
• The loop structure of the carrier gives it a large surface area which supports a high population of microorganisms and maximizes contact efficiency. This allows stable deodorizing treatment even for high concentration odors and to respond to load fluctuations.
• The activated carbon adsorption process unit can be attached in the downstream for extra-higher deodorization in some particular case.

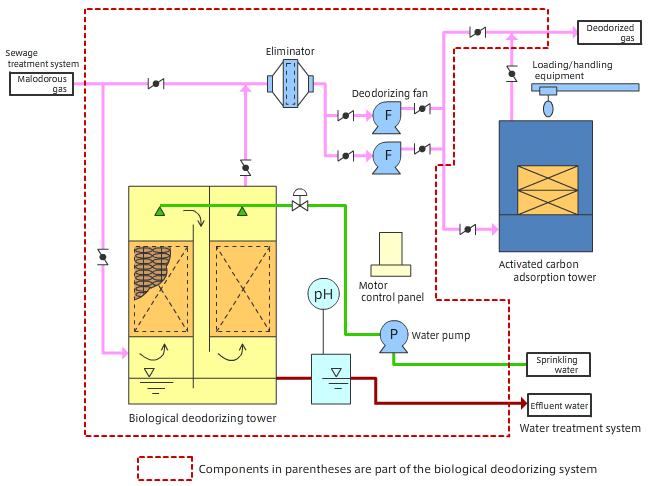

Process Flow

Specifications

Examples of high concentration odor treatment (for reference purposes)

Main Applications

• Treatment of sewage, human excrement, animal manure, seafood processing effluent.

This product is for use only in Japan.
