LPG-NG calorific value control system
- Energy
- Gas production and purification
LPG-NG calorific value control system
City Gas supplied throughout urban areas must have its calorific value adjusted at the supply base to the regulatory level. Using proprietary heat exchangers, MKK calorific value control systems save space and are low in cost.
Features
- Low cost, space saving.
- Natural Gas and LPG in liquid state mixed up and heated in a single unit.
- Requires no NG heater.
- Makes effective use of low level heat sources (15-20°C) .
- Low pressure losses.
- High turn down ratio

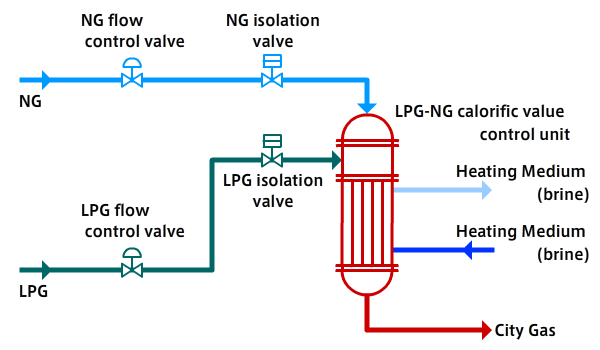

Process Flow
Specifications
- Processing capacity: 1,000 Nm3/hr to 300,000 Nm3/hr
- Delivery pressure: 0.5 MPaG to 7.0 MPaG
Main Applications
- City Gas generation
