Mitsubishi VOS Ballast Water Treatment System

The Mitsubishi VOS*1 ballast water treatment system is the first of its kind to be certified as meeting the Regulation D-2 Ballast Water Performance Standard under the IMO*2 International Convention for the Control and Management of Ships' Ballast Water and Sediments.
VOS Systems are installed in many vessels ranging in size from general cargo vessels with a system throughput of 150 ㎥/hr to super tankers (VLCC) with a throughput of 6,800 ㎥/hr.
The main components of the system are widely used in the shipping industry and the system also serves to protect deterioration of ballast tank paint and reduce wear of sacrificial or galvanic anodes.

Note 1: Venturi Oxygen StrippingTM
Note 2: International Maritime Organization

Features

Model VOS1000
  • Functions as a ballast tank anti-corrosion system without affecting the paint coating.
  • The system has been installed in VLCC super tankers.
  • The system can be readily adapted to explosion-proof specifications and only intrinsically safety component is installed in explosion-proof areas.
  • Adopts existing proven IGG (Inert Gas Generation) technology.
  • The system is equally effective for ships operating in freshwater, brackish water and seawater.
  • The system uses no chemicals and only requires fuel to operate.
  • World-wide service network is available to support the VOS System same as our SJ Series oil purifiers installed in the ships.

Specifications

  • Standard throughput : 150 m3/hr to 6,800 m3/hr
  • Certified by five countries:Republic of Liberia
    Republic of the Marshall Islands
    Republic of Malta
    Republic of Panama
    The Netherlands.

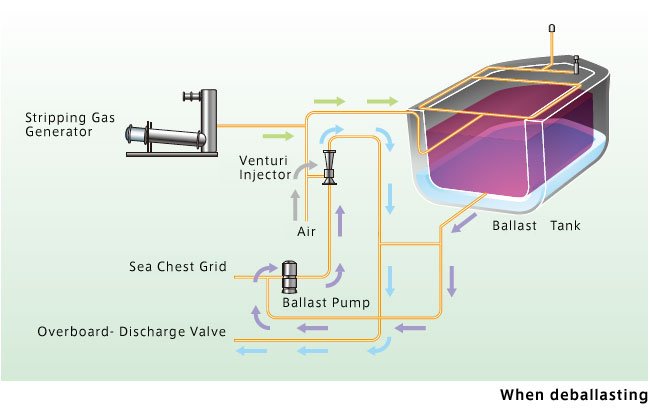

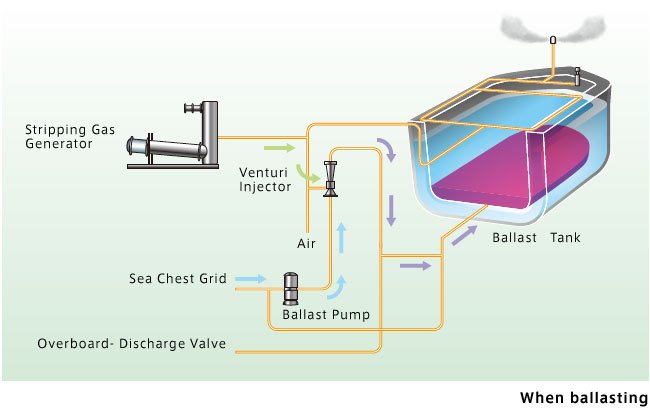

Flow Chart

Main Applications

  • Ship ballast water treatment

Lineup

Model Type250 Type500 Type1000 Type2000 Type3000 Type4000 Type6000
Throughput (㎥/hr) 150-300 850 1,300 2,400 3,600 5,200 6,800
