Mitsubishi Drum Filter

Mitsubishi Drum Filter is multi-chamber continuous drum filter. They offer superior maintenance characteristics in terms of filter cloth mounting and other aspects in comparison with conventional drum filter and are used in a wide range of applications.

Features

  • Suited to all types of filtration.
  • Highly effective cake washing and recovery of washing water, separating solids from wash- waste water.
  • Use of blowback air from inside the drum to intermittently vibrate the loosely mounted filter cloth and strip the cake. It allows recovery of dewatered thin cake.
  • No clogging in the filter cloth. The filter cloth is kept vibrating by the constant introduction of blowback air and so is less liable to clogging and lasts longer than in other types of filter.
  • Easy maintenance makes Mitsubishi Drum Filters suitable for continuous operation.

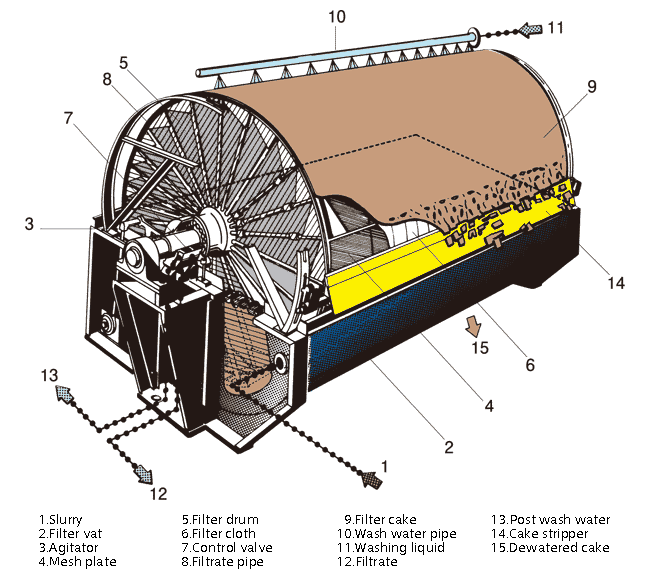

Structural Drawing

Lineups

Wide range Drum Filters are available for various applications from small to large machines, ranging from 0.25 m2 to 75 m2 in filtration area and from 520 mm to 3,660 mm in the drum diameter.

Main Applications

  • General chemical industry: Cement slurry, inorganic matter, resin polymers, pharmaceuticals, organic acids, dye intermediates, industrial chemicals, calcium carbonate, yeast.
  • Metalworking industry: Titanium oxide, ferrous oxide, alumina, magnesium hydroxide, heavy metals.
  • Food processing industry: Oils & fats, starches, sugar manufacture, soya sauce, vitamins.
  • Pulp industry: Dregs, lime mud.
  • Drainage: Factories, sewage and human excrement treatment works, sludge treatment, waste oils.
